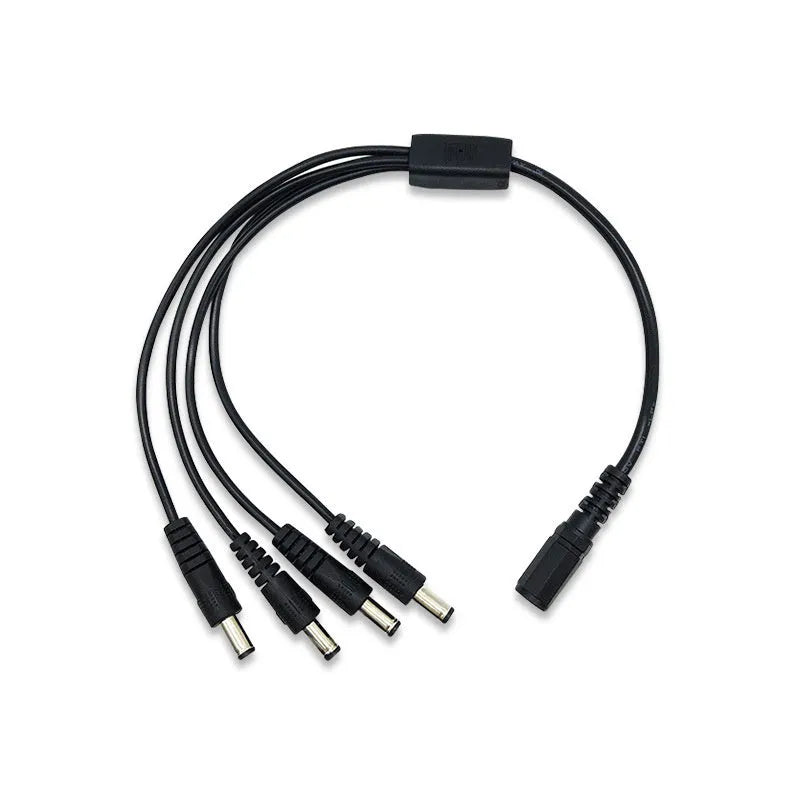

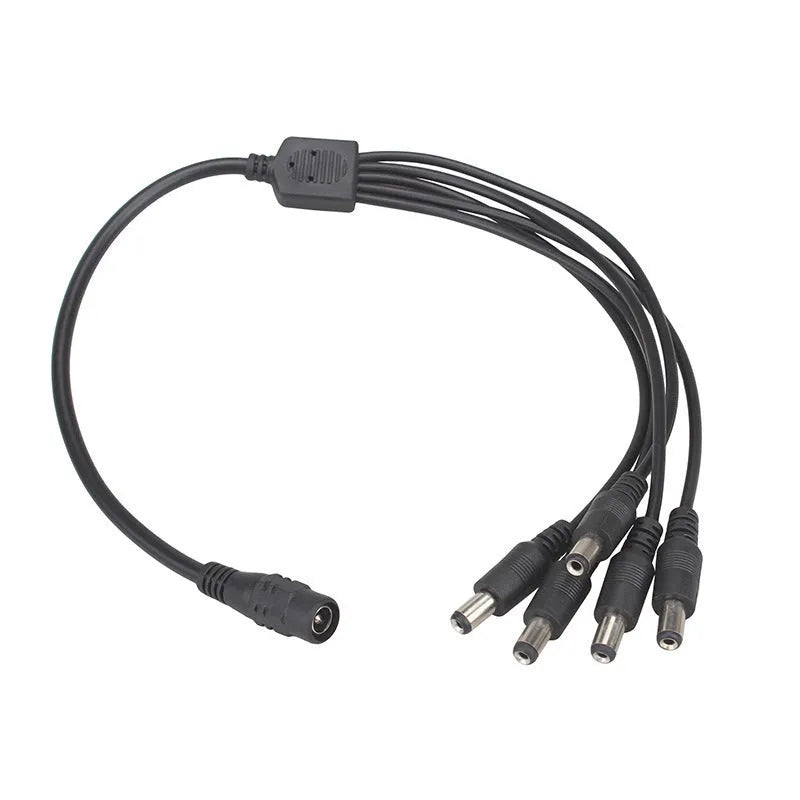

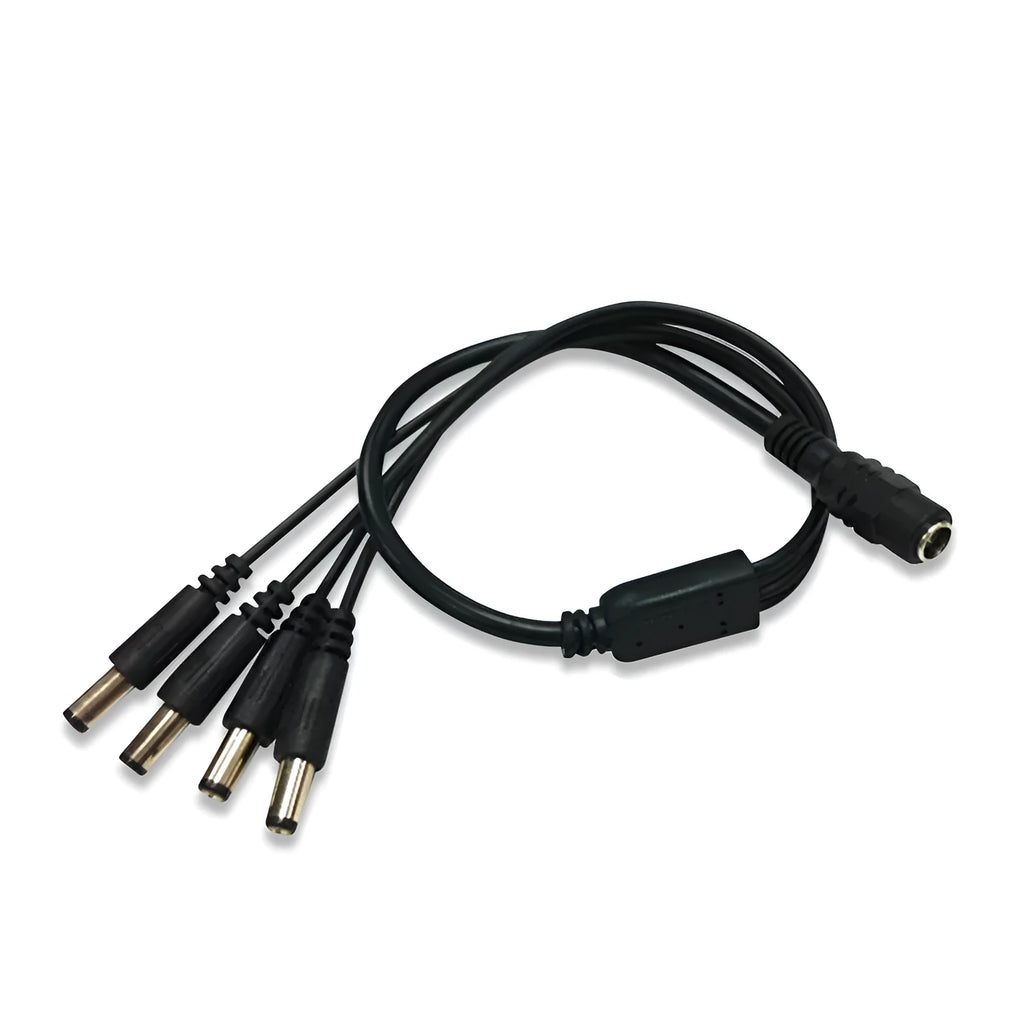

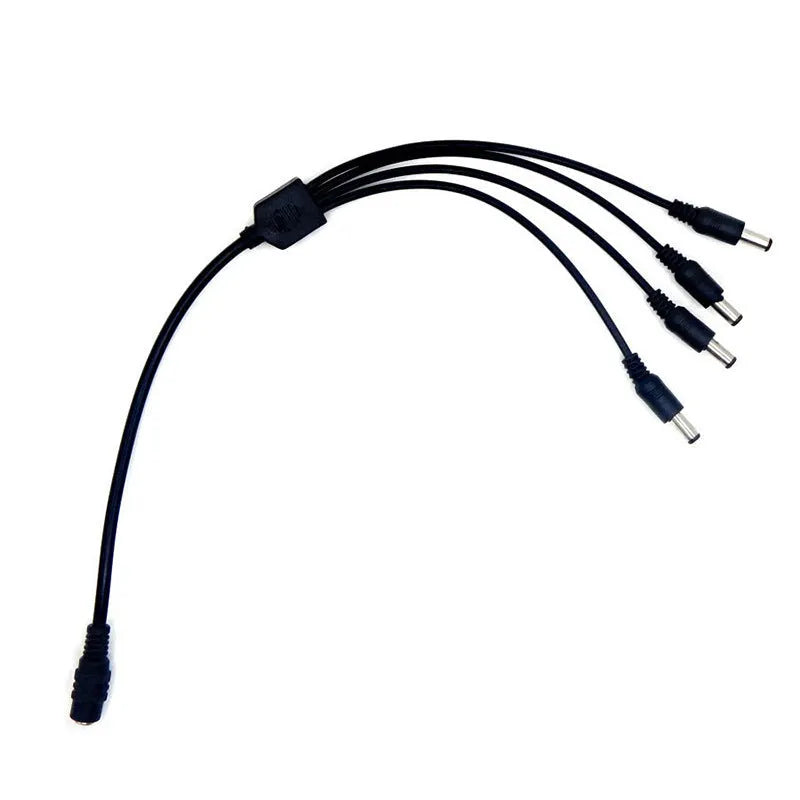

12V DC 1-to-4 Monitoring Power Splitter Cable for CCTV and Security Systems

This specialised DC power splitter cable is designed to address a common need in low-voltage electronic installations: powering multiple devices from a single source without a tangle of individual wires. Specifically built for monitoring applications, its core function is to take one 12V DC power input and distribute it reliably to four separate output devices. This is particularly useful in setups like CCTV security camera systems, where several cameras need to be powered from a central recorder or power supply unit. The cable’s compact 0.39-metre length makes it ideal for short, clean runs behind equipment racks or within enclosed housings, helping to maintain an organised and professional-looking installation. With a robust current rating and versatile connector compatibility, it provides a straightforward, plug-and-play solution for expanding your monitoring power distribution.

Features and Construction

This power splitter cable is defined by its specific electrical ratings and physical build, tailored for dependable performance in monitoring environments. Its construction prioritises reliable connectivity and safe power distribution for sensitive electronic equipment.

Material and Build

The cable utilises a copper core for its internal wiring, a standard choice for ensuring efficient electrical conductivity with minimal resistance loss over its short length. The external sheath is black, providing a discreet appearance that blends into most installation backgrounds. The product is noted as being Class A export quality, indicating a level of manufacturing standard intended for commercial use. As a custom-processing item, it is purpose-built for monitoring applications, suggesting design choices focused on the stable, continuous power demands typical of security cameras and similar devices.

Size and Practical Fit

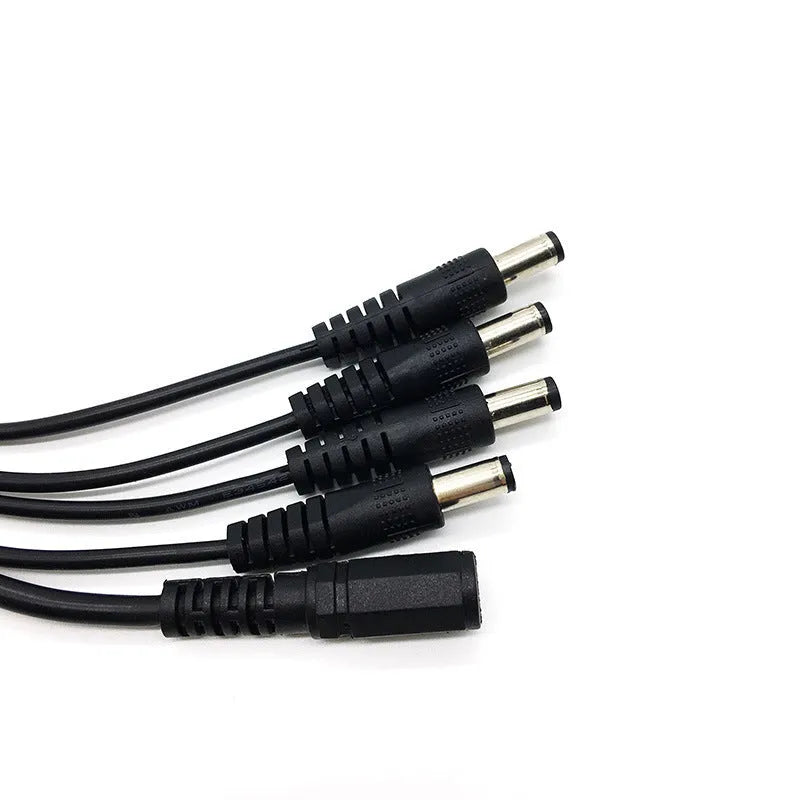

With a total length of 0.39 metres, this is a short cable designed for direct connections over minimal distances. This length is practical for linking a power supply to devices mounted on the same panel or within the same cabinet, eliminating excess cable that requires management. The key connectors are all based on a 5.5mm barrel plug: the four output ends use a 5.5mm x 2.1mm size, while the single input end is designed to accept plugs measuring either 5.5mm x 2.1mm or 5.5mm x 2.5mm, offering compatibility with a range of common power supplies. The polarity is fixed as inner positive (+) and outer negative (-), which is the most common standard for such DC connections.

Uses and Placement

The cable’s specifications clearly target professional and domestic monitoring scenarios where reliable, multi-output 12V DC power is required. Its application is focused rather than general, making it a specialist component for structured systems.

Event or Professional Use

In professional security installations, such as multi-camera CCTV systems for shops, offices, or warehouses, this splitter allows installers to power a small cluster of cameras from one suitably rated power supply or DVR unit with a power output port. This simplifies wiring, reduces the number of power adapters needed at the central location, and can contribute to a tidier, more serviceable setup. The 20A maximum current rating and 80W power rating provide headroom for powering several modern, efficient cameras without risk of overloading the cable itself.

Everyday Home Use

For home users with a security system or other 12V monitoring devices, this cable offers a simple way to expand or tidy an existing setup. For example, it could be used to power multiple dashboard cameras in a vehicle from a single 12V socket adapter, or to connect several sensors in a DIY home alarm system to a central control panel. The short length is advantageous in confined spaces like behind a television unit housing a network video recorder (NVR) and its associated cameras.

Benefits and Buying Value

The value of this product lies in its specialised function and the practical advantages it brings to system installation and organisation, rather than in generic features.

Reuse and Low Maintenance

As a passive cabling component with no moving parts or electronics, the splitter cable is designed for long-term use once installed. There are no complex settings or software requirements; it functions purely as a physical power distribution hub. Its durability will depend on the quality of its connectors and soldering, which is indicated by its Class A export classification. Proper installation within its rated parameters (not exceeding 20A current) should ensure reliable operation with minimal need for maintenance or intervention.

Why Choose This Product

This cable is chosen for its specific configuration and ratings that match common monitoring system needs. The decision to use it hinges on requiring exactly four 12V DC outputs from one input within a very short distance. Its clearly stated maximum current (20A), power (80W), and wide voltage range (1V-38V) provide the necessary technical boundaries for safe use. The versatile input connector that accepts two common plug sizes (2.1mm and 2.5mm centre pins) adds to its compatibility, reducing the need for additional adapters. For anyone building or modifying a system with multiple 12V devices, it presents a neat, single-component solution.
