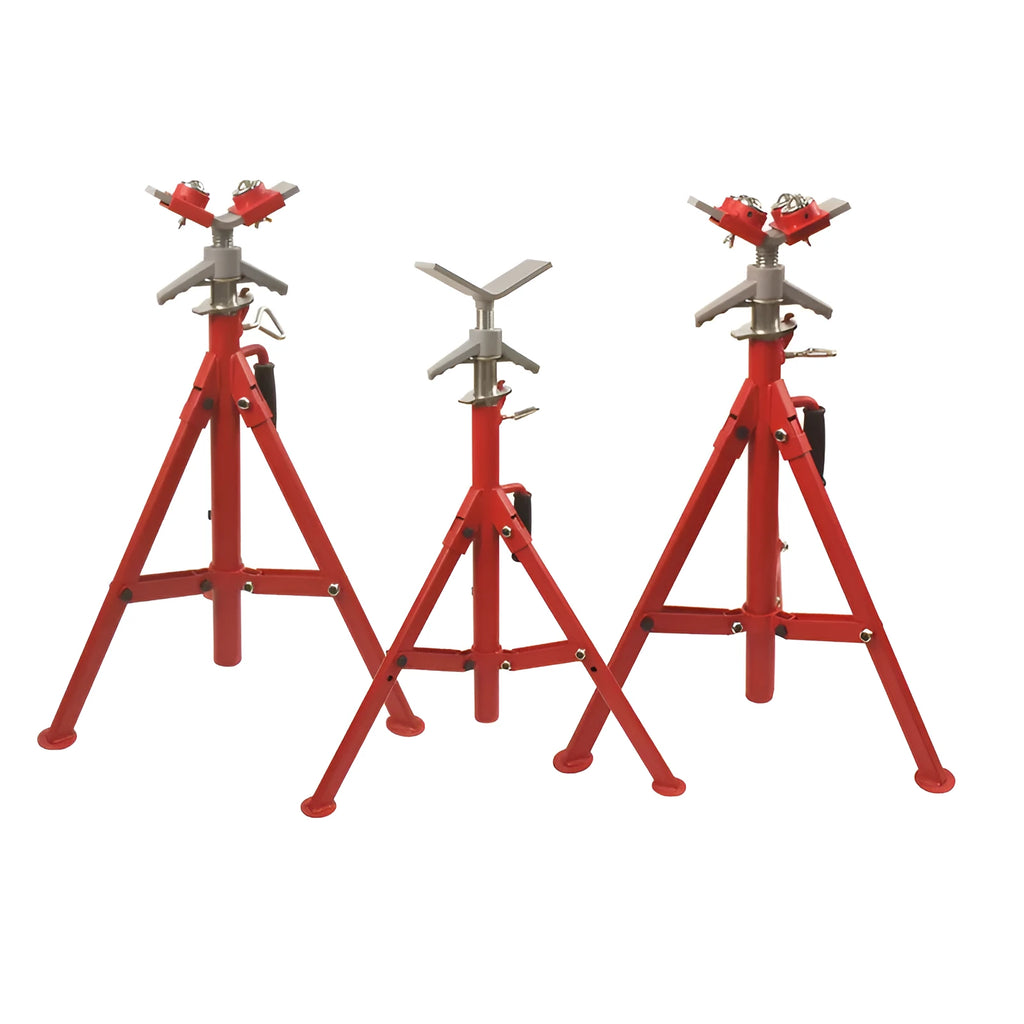

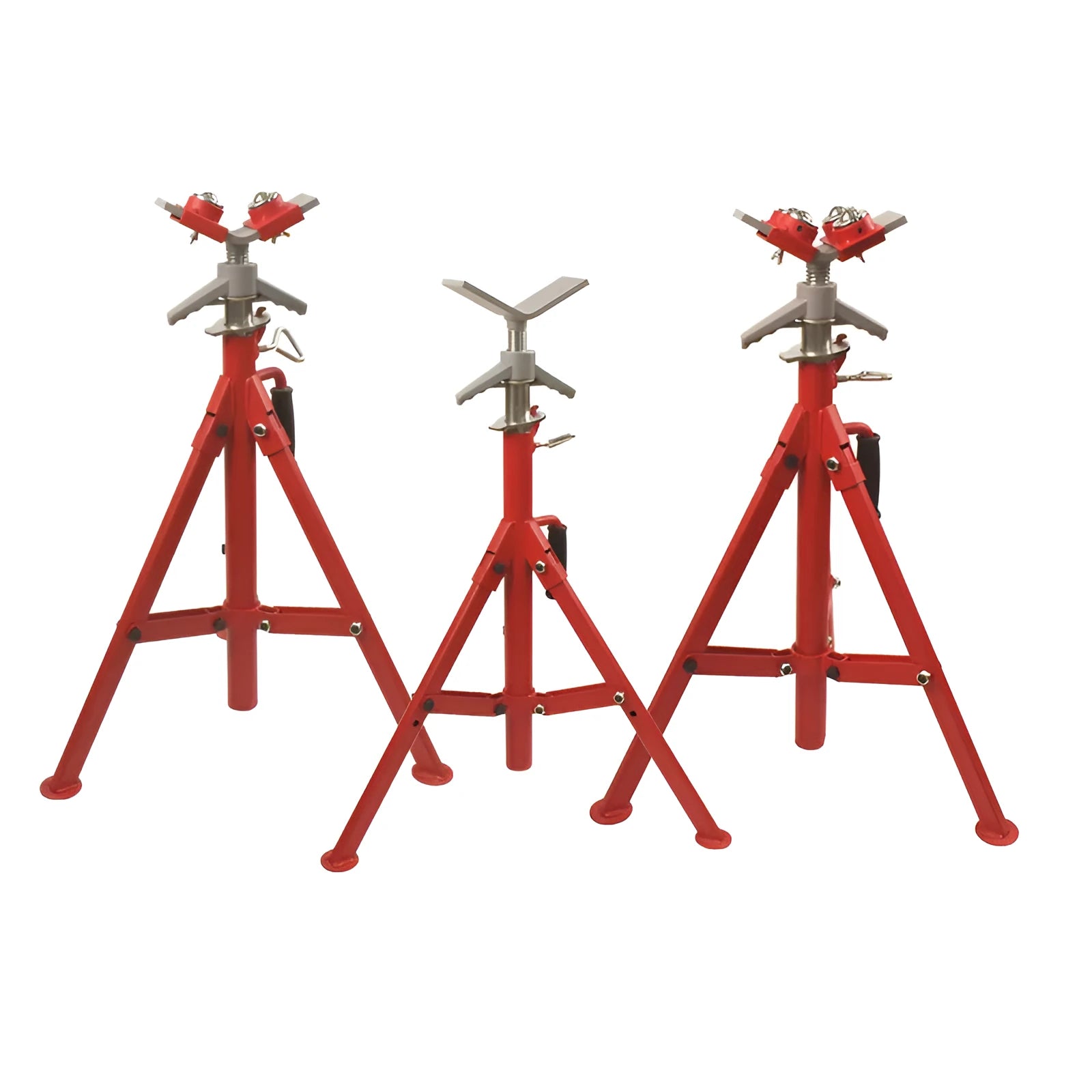

Metal V-head pipe bracket for steel pipe support with multiple height and ball bearing configurations

This pipe support bracket offers a practical solution for securing steel pipes in industrial, construction, or mechanical installations. Designed with a distinctive V-shaped head, it provides stable mounting for various pipe diameters while distributing load effectively across its metal structure. The bracket comes in multiple specifications to accommodate different installation requirements, from basic short profiles to taller variants with additional ball bearing configurations. As a dedicated pipe support component, it serves a specific role within pipework systems without unnecessary complexity in design or installation.

Features and Construction

The V-head pipe bracket range includes several specifications with distinct characteristics for different support scenarios. Each variant maintains the core V-head design principle while offering variations in height and bearing configuration to suit specific installation needs within pipework systems.

Material and Build

Constructed from metal, this pipe bracket provides the necessary structural integrity for supporting steel pipes in various applications. The material choice ensures adequate strength for load-bearing requirements without specifying particular alloys or surface treatments. The V-shaped head design creates a natural cradle for pipes, helping to secure them in position while allowing for some movement or thermal expansion depending on the specific installation requirements.

Size and Practical Fit

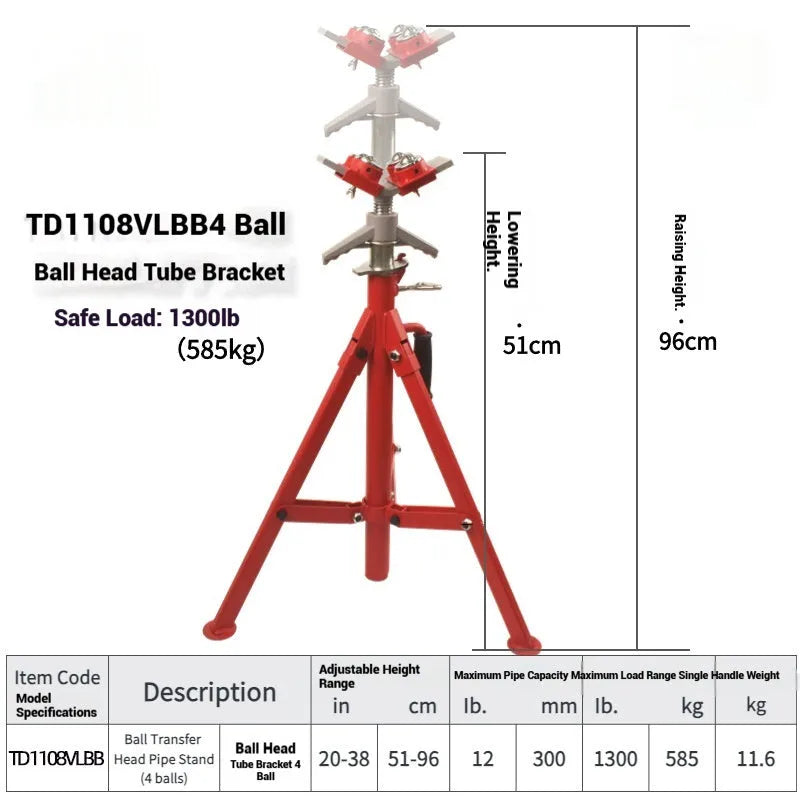

The bracket is available in both short and tall profiles, designated by the specifications TD1108VL (short) and TD108VH (high). This height variation allows installers to choose between lower-profile mounting or elevated support depending on clearance requirements and pipe routing needs. The ball bearing variants add further configuration options, with double ball (TD1108VLB/TD1108VHB) and four ball (TD1108VLBB/TD1108VHBB) designs offering different mounting possibilities.

Uses and Placement

Designed specifically for supporting pipework, this bracket serves applications where steel pipes require secure mounting points. Its straightforward design makes it suitable for various industrial, construction, and mechanical settings where reliable pipe support is necessary for system integrity.

Event or Professional Use

In professional installations, the bracket's multiple specifications allow for tailored solutions within pipework systems. The different height profiles enable installers to accommodate varying clearance requirements, while the ball bearing options provide alternatives for mounting configurations. The metal construction ensures the bracket can withstand typical loads associated with steel pipe installations in commercial or industrial environments.

Everyday Home Use

While primarily designed for industrial applications, similar principles could apply to substantial home workshop or garage installations where steel pipework requires secure support. The straightforward mounting and durable metal construction make it suitable for situations where reliable, long-term pipe support is needed in residential settings with appropriate engineering considerations.

Benefits and Buying Value

The V-head pipe bracket offers practical advantages through its specialized design and multiple configuration options. By providing a range of specifications within a single product family, it addresses different installation requirements without necessitating completely separate product selections.

Reuse and Low Maintenance

The metal construction suggests potential for reuse in different applications if installation requirements change, assuming the bracket remains undamaged during removal. Maintenance requirements would be minimal for most applications, limited primarily to periodic visual inspection for signs of wear or corrosion depending on the specific environment and metal type.

Why Choose This Product

This bracket provides a dedicated solution for steel pipe support with multiple configuration options in a single product range. The V-head design offers secure pipe retention, while the availability of different height profiles and ball bearing variants allows for customization based on specific installation requirements. The metal construction ensures adequate strength for typical pipe support applications without unnecessary complexity in design or installation procedures.
