V2 Parallel Charger Board for RC Models: Charge Up to Four 2-8S Lithium Packs Simultaneously

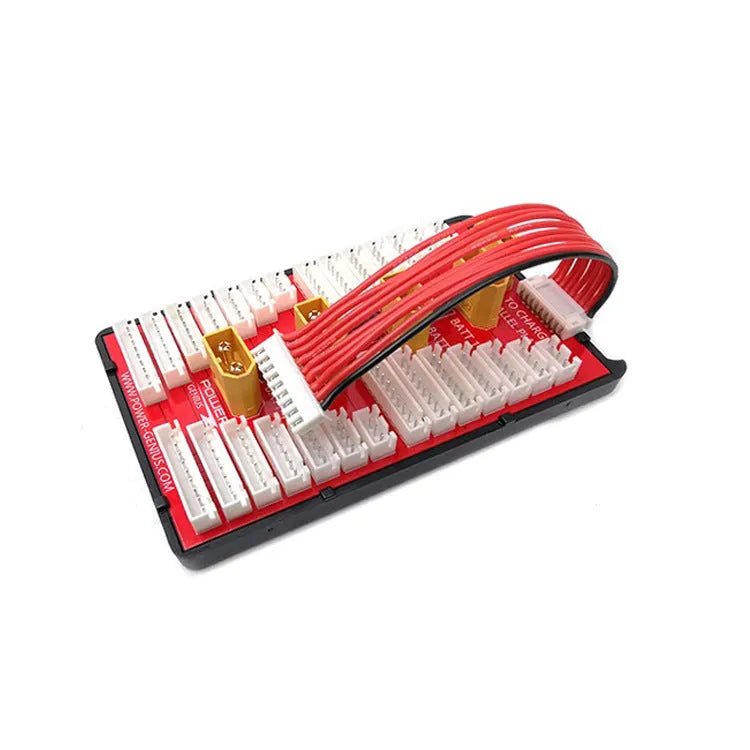

For radio control (RC) hobbyists and professionals, managing the charging cycle for multiple lithium polymer (LiPo) batteries can be a time-consuming task. The V2 Parallel Charge Expansion Adapter Board is engineered to address this by enabling the simultaneous balance charging of up to four separate battery packs. This device is specifically designed for 2-8S batteries, requiring that all connected packs are identical in type and cell count. By connecting compatible batteries in parallel, their capacities are effectively combined, allowing a single, more powerful charge cycle to service them all at once. This method can drastically reduce overall charging time compared to sequential single-pack charging, a key advantage for users with several vehicles or during intensive flying or driving sessions.

Features and Construction

The board's functionality is built upon a foundation of practical design choices aimed at efficiency and user safety. Its construction prioritises reliable electrical performance to handle the demands of high-current charging common in the RC hobby.

Material and Build

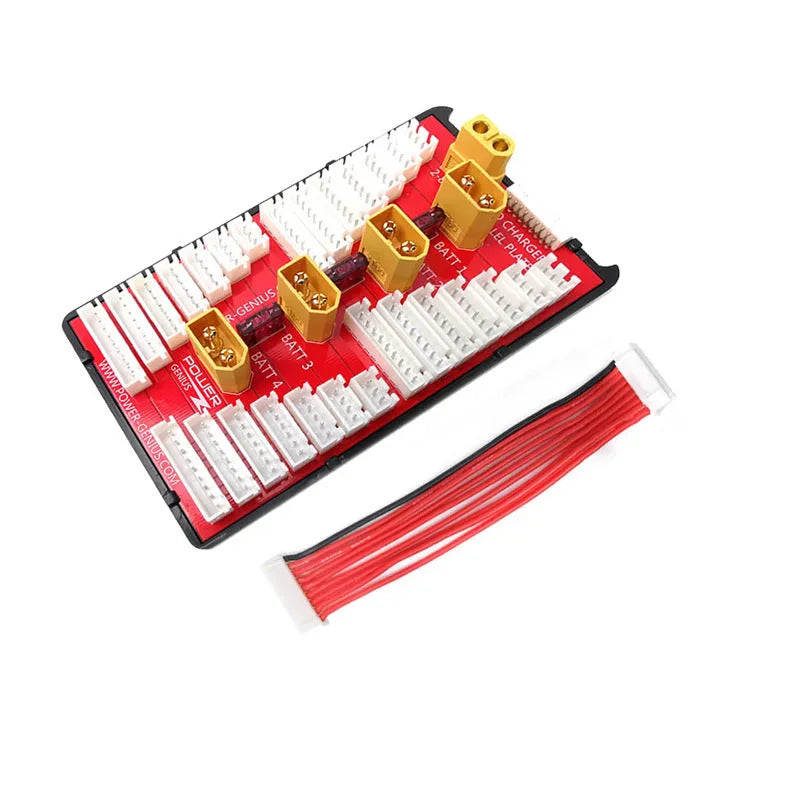

The core of the adapter is a printed circuit board (PCB) manufactured with thicker-than-standard copper foil. This specific construction is what allows the board to safely support charging currents as high as 35 amps (35A), accommodating high-capacity battery packs. All critical electrical interfaces utilise high-quality gold-plated connectors. Gold plating offers superior conductivity over bare metal and provides enhanced resistance to corrosion and oxidation, ensuring a stable and low-resistance connection over repeated use. The output wires for the balance ports are made from 18AWG multi-strand silicone sheathed wire, chosen for its flexibility, durability, and ability to handle current reliably.

Size and Practical Fit

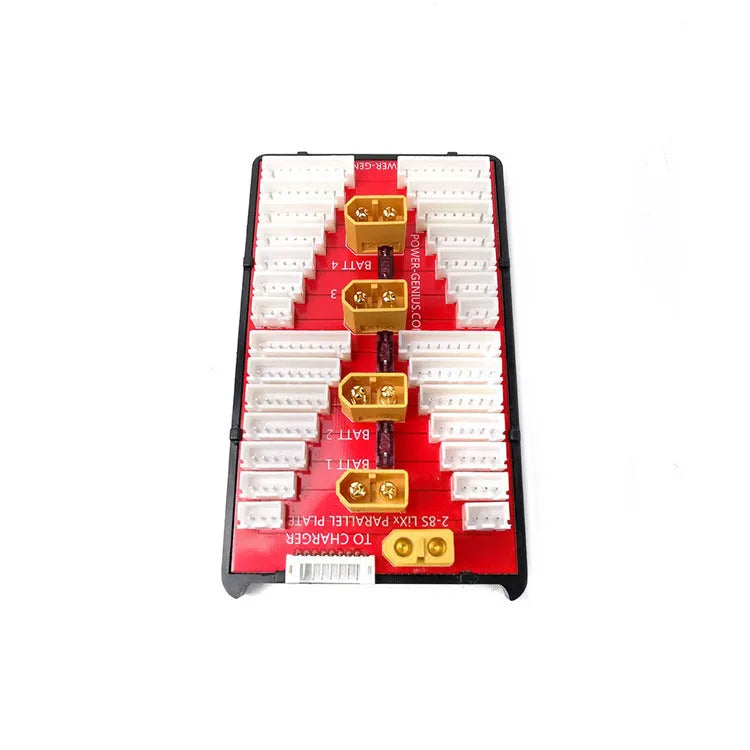

While exact physical dimensions are not specified, the board is designed as a central hub for multiple battery connections. Its layout typically groups the main power (T plug) outputs and balance port sockets clearly to facilitate organised cable management. The included set of silicone safety caps for the T plug connectors is a practical addition, allowing unused ports to be sealed off during operation. This prevents accidental short circuits caused by metal debris or tools coming into contact with the live connectors, a simple but effective safety measure for the workshop environment.

Uses and Placement

This adapter is not a standalone charger but an expansion device that works in conjunction with an existing compatible RC balance charger. It extends the charger's capability from managing one pack to managing several in one go.

Event or Professional Use

At RC racing events, drone flying competitions, or for professional pilots, time between sessions is often limited. The ability to charge four battery packs simultaneously means a user can have a full set of fresh batteries ready much faster than charging them individually. For example, charging four 4S 5000mAh packs individually might take several hours in total. Using this parallel board, they are combined into a virtual 4S 20000mAh pack. If charged at 1C, this would support a 20A charge current, potentially completing the job in roughly the time it would normally take to charge just one of those packs, significantly improving efficiency.

Everyday Home Use

For the enthusiast at home, the board simplifies battery maintenance and preparation. It allows for batch charging of all batteries used in a session, ensuring they are all stored at the same safe voltage level. It also reduces wear and tear on the charger's main output port and the user's battery connectors by minimising the number of physical plug and unplug cycles required. The board encourages good practice by necessitating that only matched batteries (same S count and type) are charged together, which is a fundamental rule for safe parallel charging.

Benefits and Buying Value

The primary value proposition of this board lies in time savings and operational convenience, supported by integrated safety features.

Reuse and Low Maintenance

As a passive adapter board with no moving parts or complex electronics, it is built for repeated use over a long period. The robust materials—thick PCB copper, gold-plated contacts, and silicone wire—are selected for longevity and resistance to degradation from handling. Maintenance is minimal, primarily involving keeping the connectors clean and ensuring the silicone safety caps are used when ports are vacant.

Why Choose This Product

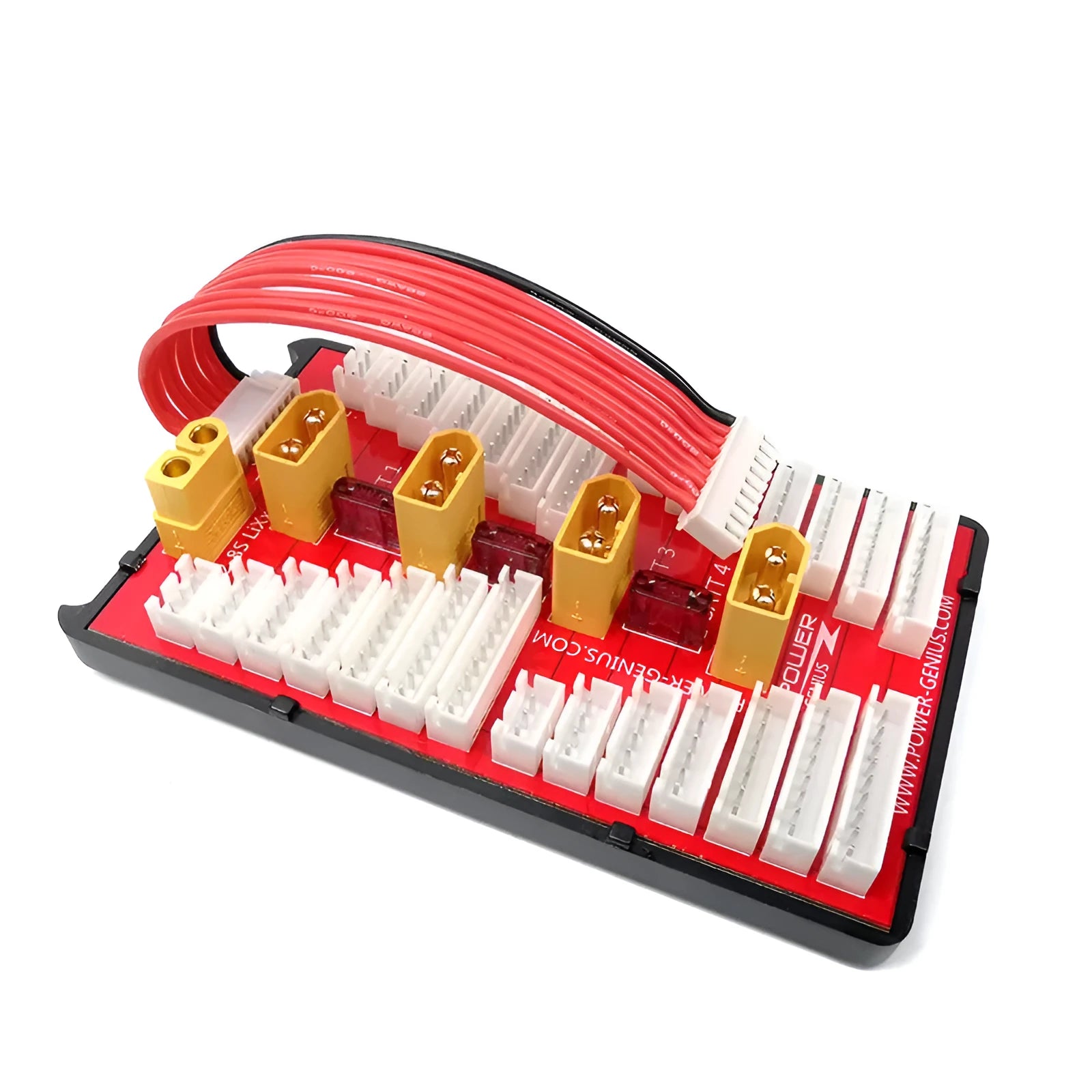

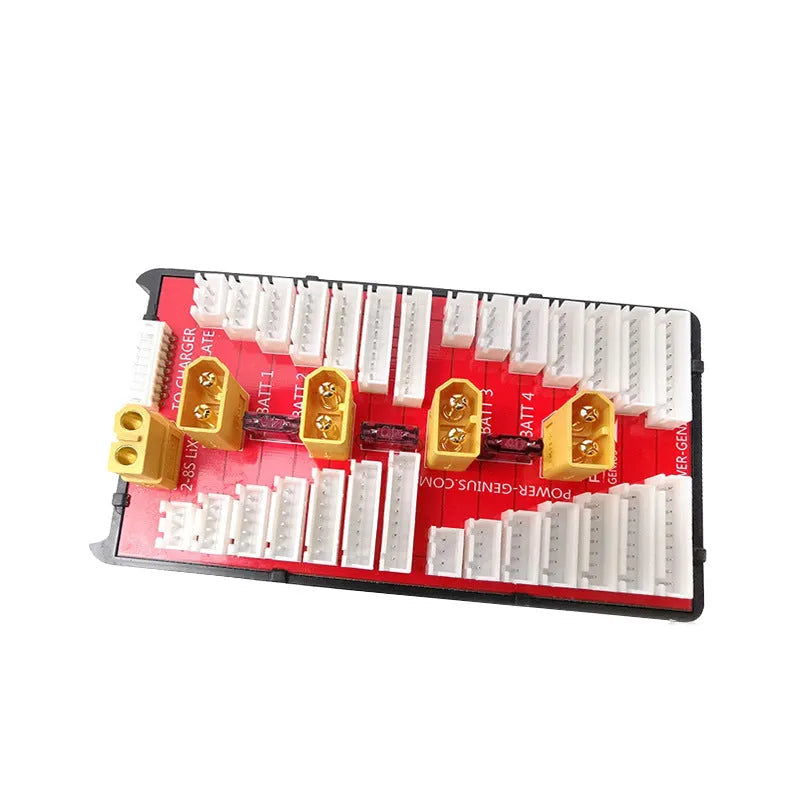

This V2 board offers a clear, source-supported advantage for users who regularly charge multiple RC LiPo batteries. Its capability to handle four packs and a 35A current caters to common high-demand scenarios. The inclusion of a 40A fuse between each battery group is a critical safety differentiator; if a significant voltage difference exists between two packs when connected, the fuse will blow to protect the more expensive batteries and charger from potential damage due to a massive current surge. This built-in protection, combined with the high-current design and safety caps, provides a practical and safer solution for parallel charging compared to simpler, unprotected adapters.
