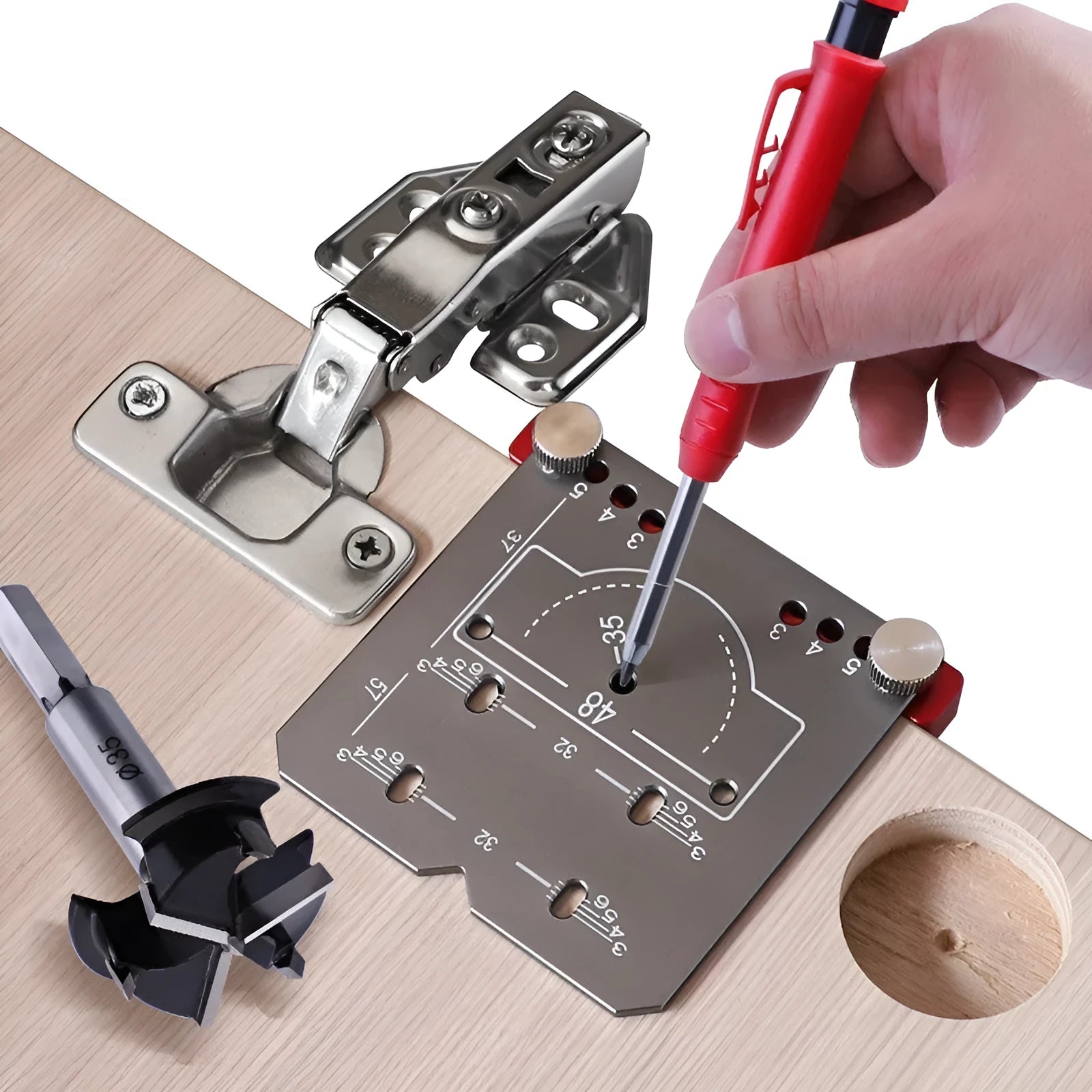

35mm Adjustable Hinge Locator Tool for Accurate Cabinet and Wardrobe Door Installation

Installing cabinet hinges accurately is a fundamental task in woodworking and home improvement that can be time-consuming without the right tool. This 35mm hinge locator is designed specifically to address this challenge, providing a consistent and reliable method for marking hinge positions on doors. It combines the functions of a punch locator and a marking jig into a single, purpose-built instrument. Crafted from aluminium alloy, the tool is light enough for comfortable handling yet provides the necessary rigidity for precise work. It is engineered for use with the common 35mm extended arm and middle bend hinges used in kitchen cabinets, wardrobes, and other fitted furniture, making it a practical addition to any DIY enthusiast's toolkit.

Features and Construction

This hinge locator tool is built with a focus on practical functionality and durable construction for repeated use in workshop or home settings.

Material and Build

The main body of the locator is fabricated from aluminium alloy. This material choice results in a tool that is both lightweight and sufficiently robust to maintain its shape under normal use, preventing flex that could lead to inaccurate markings. The integrated cutting blade is made from a hard alloy, specifically tungsten carbide, which has undergone a high-temperature heat treatment process. This treatment significantly increases the blade's hardness, contributing to its sharpness and resistance to wear over time, ensuring clear, precise marks on wood surfaces.

Size and Practical Fit

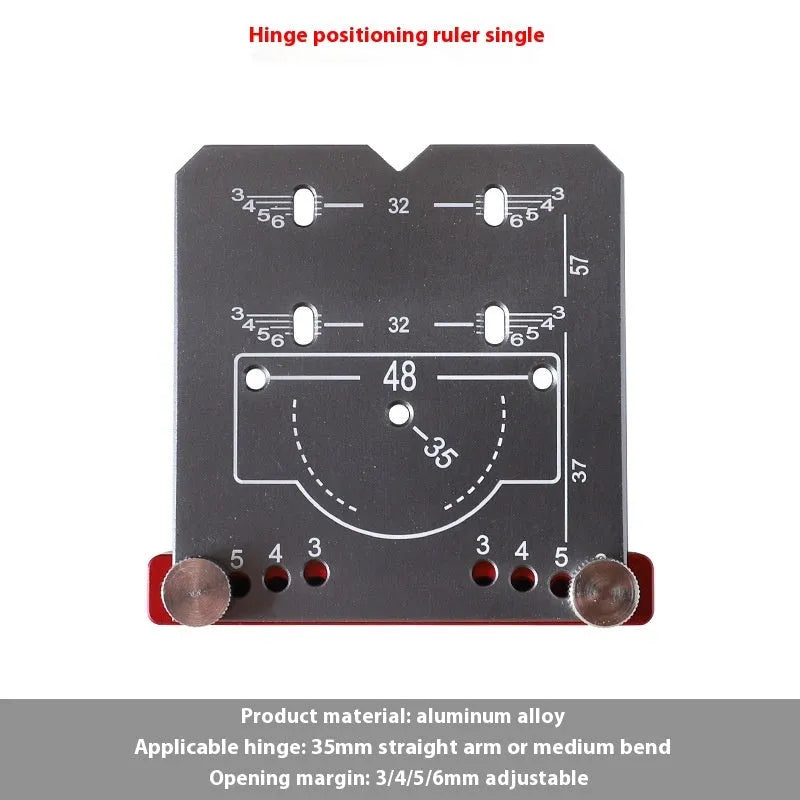

The tool is precisely engineered to accommodate 35mm diameter cabinet hinges, a standard size for many kitchen and wardrobe applications. Its key functional feature is the adjustable opening margin. The user can select from four specific settings: 3mm, 4mm, 5mm, or 6mm. This adjustability allows for fine-tuning the hinge's inset from the door edge to suit different design preferences or hardware specifications, offering greater versatility than fixed-margin jigs for various woodworking projects.

Uses and Placement

This tool is designed for a clear and specific primary use case, with applications spanning from professional fitting to home DIY.

Event or Professional Use

For tradespeople such as kitchen fitters or carpenters, consistency and speed are crucial. This hinge locator enables the rapid, repeatable marking of multiple hinge positions across a set of cabinet doors, ensuring all hinges are aligned perfectly. The adjustable margin allows a single tool to be used for different job specifications or client requests, potentially reducing the number of specialist jigs needed on site and streamlining the installation process.

Everyday Home Use

For the home DIYer undertaking projects like fitting a new wardrobe, assembling flat-pack furniture requiring hinge adjustments, or renovating kitchen cabinets, this tool demystifies a critical step. It removes the guesswork and potential for error associated with measuring and marking hinge positions manually with a ruler and pencil. The result is a more professional-looking finish, with doors that hang correctly and operate smoothly, which can be particularly satisfying for those improving their own living space.

Benefits and Buying Value

The value of this product lies in its targeted problem-solving, straightforward operation, and the practical benefits it offers users across different skill levels.

Reuse and Low Maintenance

As a dedicated tool rather than a consumable, it is designed for reuse across multiple projects. The durable aluminium alloy construction and hardened tungsten carbide blade are chosen to withstand repeated use without significant degradation in performance. Maintenance is minimal; keeping the tool clean and storing it safely are typically all that is required to preserve its accuracy and functionality for future jobs, representing a long-term solution for hinge installation tasks.

Why Choose This Product

This hinge locator stands out for its specific design for 35mm hinges and its adjustable margin feature. Unlike generic marking tools, it provides a guided, foolproof method for a common but precise task. The combination of a lightweight aluminium frame and a hard-wearing tungsten carbide blade offers a balance of usability and durability. It addresses a clear need for accuracy in furniture assembly and installation, providing a reliable result that can improve the quality and efficiency of both professional work and DIY projects.
